EFS - Encrypting File System. Encrypted Files and Folders (NTFS5 only)

$EFS Attribute

When NTFS encrypts file, it sets flag Encrypted (0x4000) for the file and creates $EFS attribute for the file where it stores DDFs and DDRs. This attribute has Attribute ID = 0x100 in NTFS and can be pretty lengthy, occupying from 0.5K to several kilobytes depending on number of DDFs and DRFs.

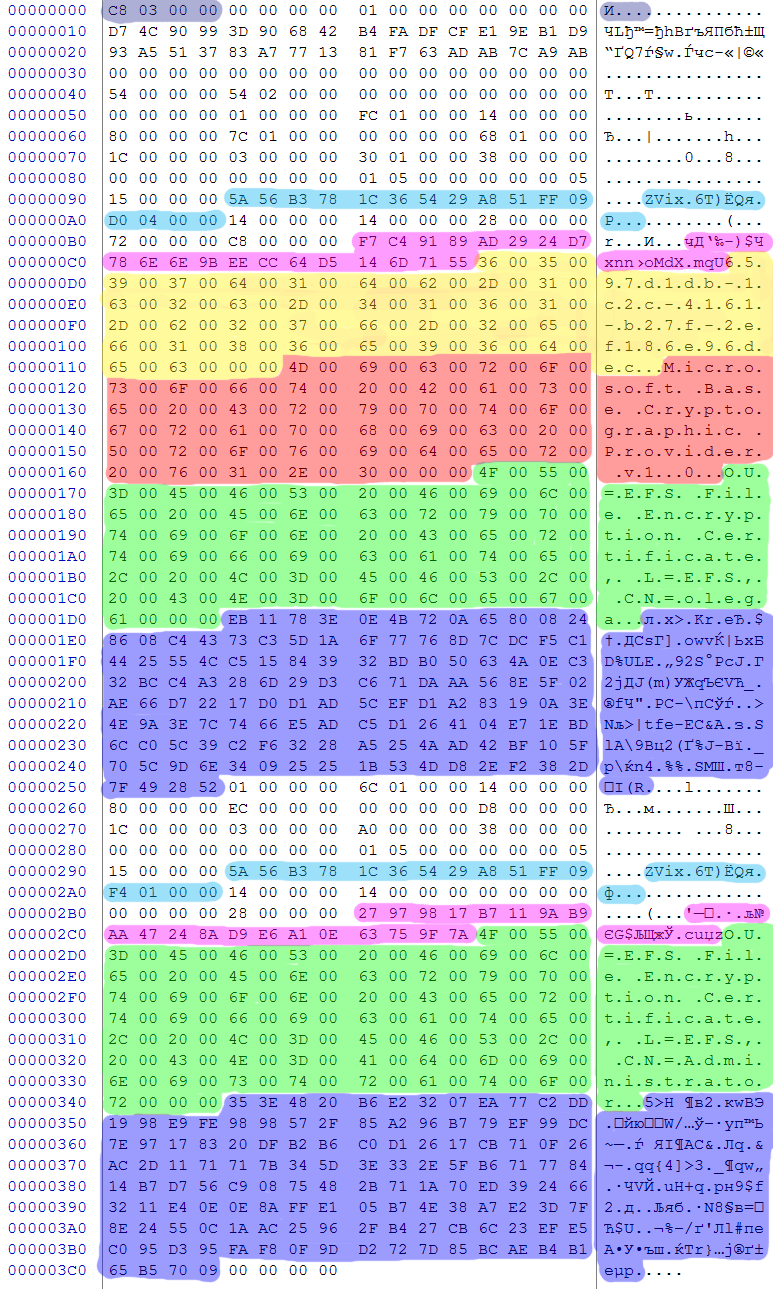

Here's an example of $EFS attribute with more details.

$EFS attribute size

Computer SID and user number. It specifies folder where EFS stores certificates. In order to get folder name EFS makes some manipulations:

5A56B378 1C365429 A851FF09 D040000 - data stored in $EFS,

78B3565A 2954361C 09FF15A8 000004D0 - reversed

2025018970-693384732-167712168-1232 - converte to decimal

S-1-5-21-2025018970-693384732-167712168-1232 - SID prefix added

So, the folder will be %User Profile%\Application Data\Microsoft\Crypto\RSA\S-1-5-21-2025018970-693384732-167712168-1232\

Public key thumbprint

Private key GUID (also used as container name). This name EFS uses when it aquires context from CryptoAPI provider. If there's only one DDFin $EFS attribute, container name can be figured out from $EFS (this field), but as more users added to the file (more DDFs or DRFs), PK GUID is not stored for all of them and must be retrieved from certificate storage based on public key thumbprint.

Cryptographic provider name = Microsoft Base Cryptographic Provider v.1.0

User name, to whom current DDF or DRF belongs

Encrypted FEK. Usually FEK is 128-bit long (in case of DESX) but since it's encrypted with 1024-bit RSA key, its encrypted length is 1024 bits.
